Raspberry Pi External Hardware Watchdog

And one of their underdocumented features is a builtin hardware watchdog.

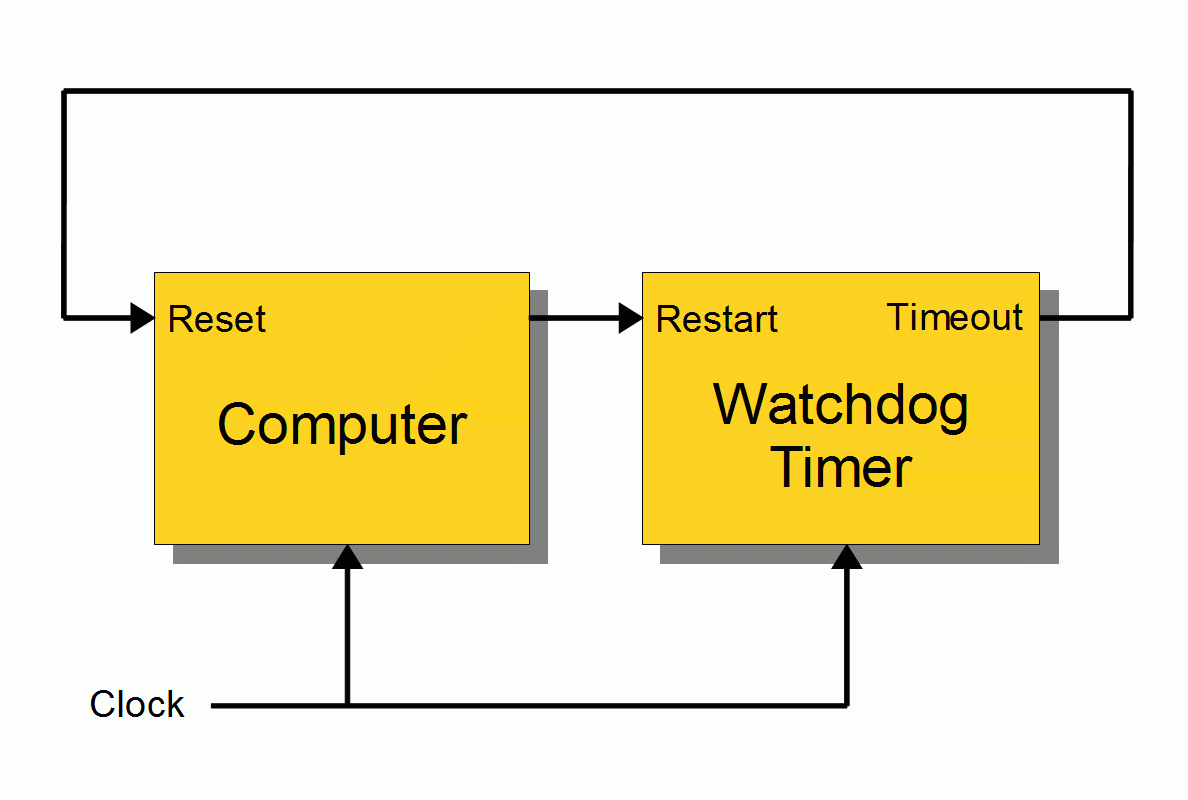

Raspberry pi external hardware watchdog. Finally we look at a real world problem of rfi. Hardware watchdog bcm2708 wdog. The countdown timer on the watchdog does not reset when no pulse signals are sent due to an error on the raspberry pi. In essence the piwatcher is a programmable watchdog circuit for the raspberry pi.

So following the instructions i have installed watchdog for my pi. Sudo nano etc watchdog conf uncomment the line that starts with watchdog device by removing the hash to enable the watchdog daemon to use the watchdog device. These are a few of the issues that can be resolved with an external watchdog. However it doesn t mean the internal watchdog is useless just limited.

And add the following. The internal watchdog is not completely independent of the raspberry pi. In the case of the raspberry pi and an arduino an external watchdog timer has a much bigger bark than an internal one. Why do we say this.

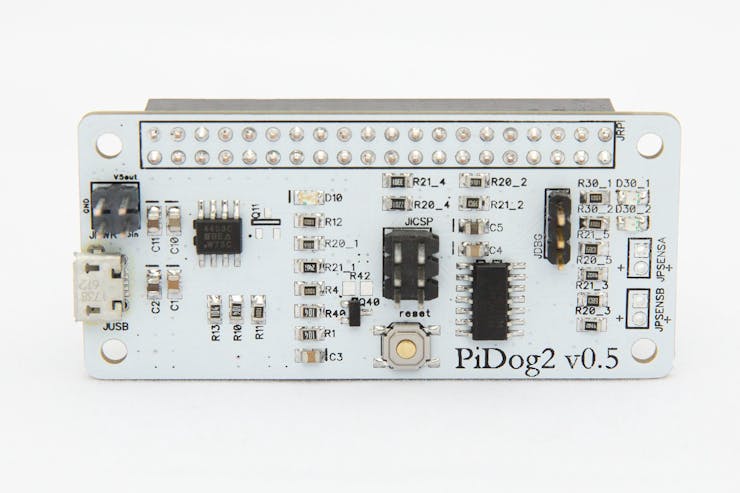

Run the following command to activate the module and service. Sudo apt get install watchdog. External watchdog timers for raspberry pi arduino systems. The hardware watchdog hat and power manager is compatible with any raspberry pi with a 40 pin connector and features a pair of power connectors a micro usb port equipped on top of the board plus a 2 1mm barrel connector on the bottom.

Based on instructions it receives through i2c the piwatcher can then be instructed to. The board must be fitted on the first 6 pins of the raspberry gpio header and plugged into a micro usb power supply suitable for the raspberry pi in use. In part 5 of this series we look at setting up an external watchdog timer with the arduino and also with the raspberry pi. Sudo apt get install watchdog sudo update rc d watchdog defaults configure the watchdog daemon.

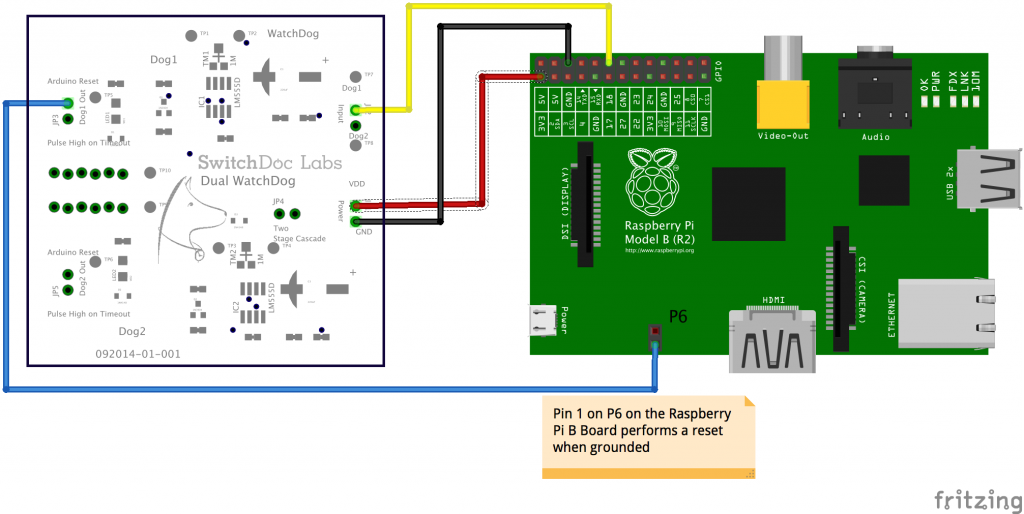

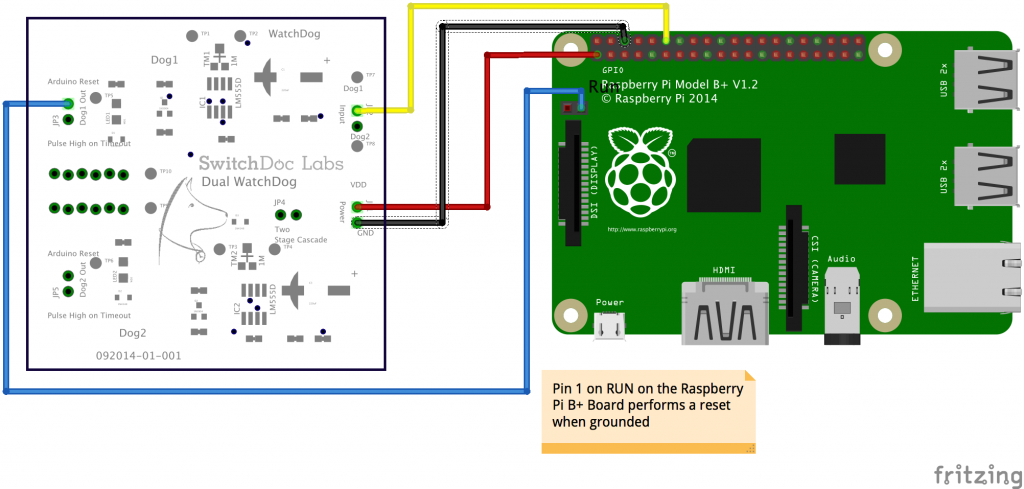

Theoretically this should not matter but the raspberry pi running linux is a complex system. It is a timer that is internal to the cpu and intimately related to the cpu such as the arduino internal watchdog timer and the raspberry pi internal watchdog timer. Uncomment the following line in etc watchdog conf. We use the switchdoc labs dual watchdog timer which is a good choice for an external watchdog timer in many but not all systems.

Sudo modprobe bcm2708 wdog sudo service watchdog restart. This little hardware service will once enabled watch the system activity and automatically power cycle the raspberry pi once it gets stuck.
